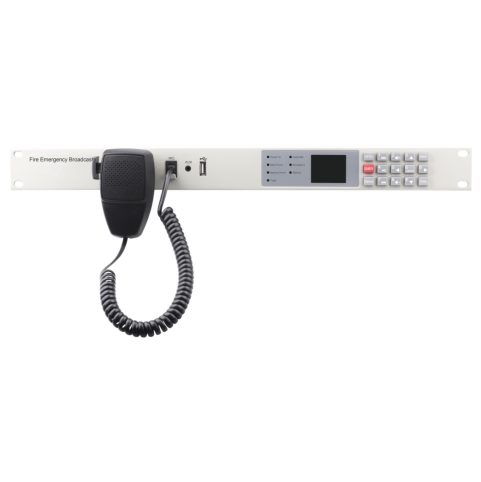

The 500 W AT-FR rack type fire emergency broadcasting panel is the top-power model of the series. Installed in a 19" cabinet, it works as the core host for large-area fire emergency broadcasting systems in malls, airports, stations, industrial plants and stadiums.
It connects to fire alarm linkage controllers, output modules, constant-voltage speakers and expansion amplifiers. Under fire conditions, the panel broadcasts pre-recorded evacuation messages or live voice instructions to a large number of speakers, ensuring clear guidance across the whole building.
Rack type 1U fire emergency voice control panel with 500 W high power
120 VAC constant-voltage output, capable of driving many speaker lines and long cable runs
EMER Radio, MIC, USB / MP3 and AUX four broadcasting modes
Emergency message import and editing via MIC or USB (up to 30 s)
30-minute loop recording for system events and voice records
Continuous monitoring of speaker line, mains and backup power with alarm indication
Overload protection: safe handling of heavy load and fault conditions
Optional communication interface module for integration into fire linkage and building management systems
Intelligent air-cooled system to guarantee stable operation at 500 W output
Compatible with multiple rack expansion amplifiers through signal port
Working Environment
Ambient temperature: 0 °C to 40 °C
Relative humidity: ≤ 95% RH, non-condensing
Electrical
Mains input: AC 187 V to AC 242 V
Speaker output: 120 VAC constant-voltage line
Rated output power: 500 W
Approx. rated output current: 4.16 A
Frequency response: 80 Hz to 8 kHz (±3 dB)
Harmonic distortion: ≤ 5%
Signal-to-noise ratio: ≥ 70 dB
Recording
Recording time: 30 minutes loop recording
Mechanical
Installation: 19" cabinet, 1U panel type
Dimensions: 482.6 mm × 188.0 mm × 44.0 mm
