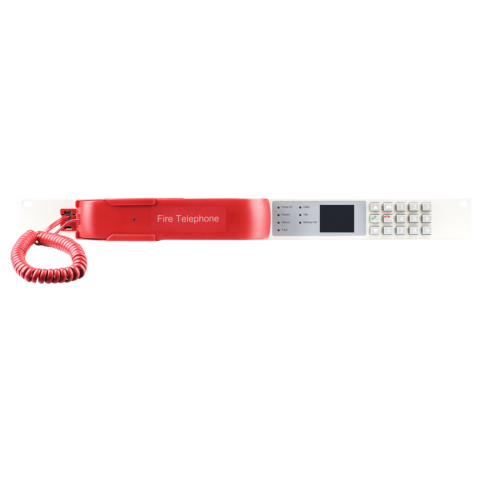

The TJ102 Fire Telephone Panel is the core of a dedicated fire fighters telephone system. It adopts a two-bus communication design and works together with TJ201 wall-mounted extension, TJ202 hand-held extension and ITJ301 fire telephone jack to provide full-duplex voice communication between the fire control room and firemen at each floor or zone.
The panel supports 1–126 address codes with no duplication, and an address book can be created either by automatic login of extensions or by importing data from an SD card. A real-time clock with battery backup keeps time even when power is off, ensuring that the built-in 24-minute voice recorder and 999-event history log store accurate incident information for after-event review.
All configuration operations are protected by a two-level password system (user and admin) to avoid accidental mis-operation. The panel is powered by DC 20–28 V (typical 24 V), provides up to 2000 m communication distance, and is suitable for integration in GB16806 fire alarm & linkage control systems for office buildings, shopping malls, hospitals, schools, factories and other public or industrial facilities.
Two-wire fire telephone system panel for fire fighters communication
Supports 126 address codes (1–126) with no duplicate address
Works with TJ201 wall extension, TJ202 hand-held extension, ITJ301 fire telephone jack
SD-card address book import for fast commissioning and maintenance
Real-time clock with battery backup – keeps accurate time during power loss
Call recording (24 min) and 999-event history log for incident traceability
Panel can call and talk with up to 5 extensions simultaneously
Any extension can lift the handset to auto-call the panel
Two-level password protection (user / admin) to secure settings
Clear fault indication for bus fault, extension fault, jack fault, not-hung-up status
Self-test function for LEDs, buzzer and LCD backlight
Designed to comply with GB16806 Fire Linkage Control System requirements
19-inch 1U panel-mount design, suitable for installation in standard fire control racks
| Item | Specification |
|---|---|
| System type | Two-wire fire telephone panel |
| Address range | 1–126 addresses, no duplicate code |
| Communication distance | Up to 2000 m |
| Power supply voltage | DC 20–28 V (typical DC 24 V) |
| Output current | 0.5 A |
| Voice frequency response | 300 Hz – 3400 Hz (±3 dB) |
| Transmission attenuation | ≤ 5 dB |
| Call recording | 24 minutes total |
| Event records | 999 records |
| Interface functions | Address book, query, setup, self-test, reset, automatic login, extension shielding |
| Password levels | User password (keyboard unlock), admin password (parameter setting) |
| Working temperature | 0 °C ~ 40 °C |
| Working humidity | ≤ 95 % RH (non-condensing) |
| Dimensions | 482.6 × 188.0 × 44.0 mm (1U; 188.0 mm includes handset thickness 41.5 mm) |
| Installation | 19" panel mount / rack mount |
| Item | Specification |
|---|---|
| Models | TJ201 wall-mounted extension, TJ202 hand-held extension |
| Dimensions | 201.5 × 44.4 × 41.5 mm |
| Installation | TJ201: wall-mounted; TJ202: portable / hand-held |
| Standby current | Approx. 500 µA |
| Operating current | Approx. 30 mA |
| Item | Specification |
|---|---|
| Model | ITJ301 fire telephone jack |
| Dimensions | 90.9 × 88.0 × 37.5 mm |
| Installation | 86 box flush / wall mount |
| Standby current | Approx. 1.3 mA |
| Operating current | Approx. 30 mA |
Bus cable: twisted pair, cross-section ≥ 1.0 mm²; for distance > 1000 m, use ≥ 1.5 mm²
Keep away from strong interference sources when routing the bus
DC 24 V power supply must observe correct polarity
Panel chassis must be connected to protective earth (PE)
Fire control room fire fighters telephone system
High-rise office buildings, shopping centres, hospitals, schools
Industrial plants, warehouses, logistics centres
Any project requiring a GB16806-compatible fire telephone panel integrated with the fire alarm & voice evacuation system
